Art text

Drawing Art Text

Shows different types of art texts.

Сode Snippet

using (var bitmap = new Bitmap(600, 400, PixelFormat.Format24bppRgb, new RgbColor(0xff, 0xff, 0xff, 0xff)))
using (var graphics = bitmap.GetAdvancedGraphics())
{
    var font = graphics.CreateFont("Arial", 48);
    var brush = new SolidBrush(new RgbColor(0x41, 0x41, 0x41));

    var texts = new Aurigma.GraphicsMill.AdvancedDrawing.Text[]
    {
        new BridgeText("Bridge Text", font, brush)
        {
            Center = new System.Drawing.PointF(150f, 50f),
            Bend = 0.2f,
        },
        new BulgeText("Bulge Text", font, brush)
        {
            Center = new System.Drawing.PointF(150f, 150f),
            Bend = 0.2f,
        },
        new PinchText("Pinch Text", font, brush)
        {
            Center = new System.Drawing.PointF(150f, 250f),
            Bend = 0.2f,
        },
        new RoofText("Roof Text", font, brush)
        {
            Center = new System.Drawing.PointF(150f, 350f),
            Bend = -0.2f,
        },
        new ValleyText("Valley Text", font)
        {
            Brush = new SolidBrush(RgbColor.Yellow),
            Pen = new Pen(RgbColor.Red, 2f),
            Center = new System.Drawing.PointF(450f, 50f),
            Bend = 0.2f,
        },
        new WedgeText("Wedge Text", font, brush)
        {
            Center = new System.Drawing.PointF(450f, 150f),
            LeftScale = 2.0f,
            RightScale = 0.7f,
            Tilt = -0.3f,
            Effect = new Shadow(new RgbColor(80, 80, 80), 5, 4, 4),
        },
        new RoundText("Round Text", font, brush)
        {
            Center = new System.Drawing.PointF(450f, 300f),
            Bend = 1,
            Effect = new Glow(new RgbColor(0x66, 0xaf, 0xe9), 5),
        },
    };

    foreach (var text in texts)
    {
        graphics.DrawText(text);
    }

    bitmap.Save("ArtText.png");
}

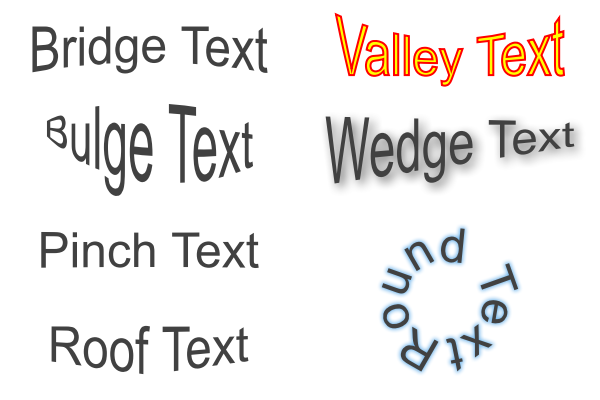

Output
